MATCHFIT Dado Stop Pro

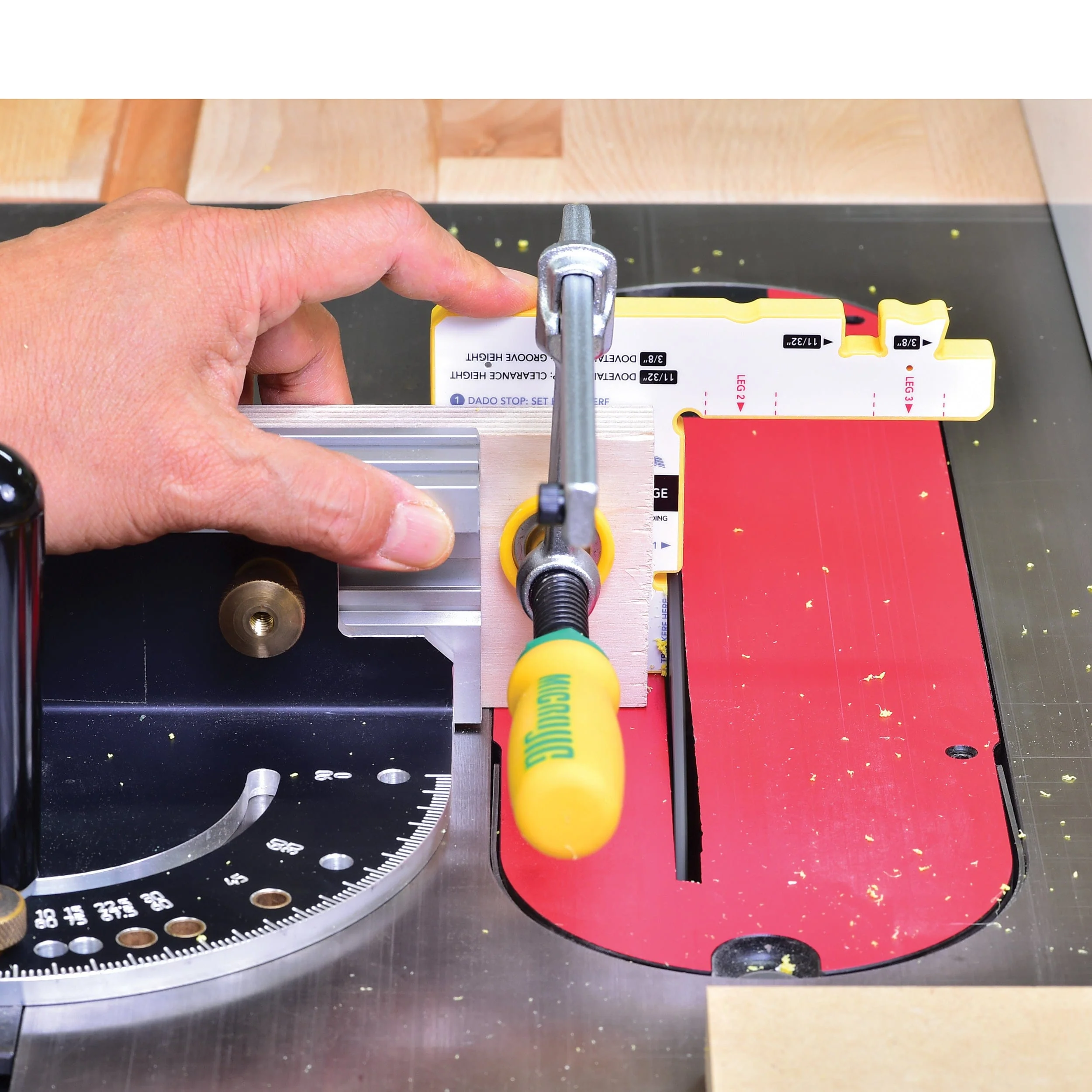

Take your woodworking projects to the next level with MicroJig's MatchFit™ Dado Stop Pro system. This innovative tool lets you create perfectly fitting lap joints, inlays, and dado cuts, all with an ordinary table saw blade - no dado stack required! With the MatchFit Dado Stop Pro, you'll achieve airtight joints effortlessly, without the need for measuring or test cuts. The legs on the jig set the location of the shoulders, and the waste in the middle is then cleared with repeated passes over the blade. Plus, the Dado Stop can also be used as a crosscut stop to prevent binding when using the fence for repetitive crosscuts. The MatchFit Setup Gauge is included, ensuring consistently fast and easy setups. With its precision engineering and versatile design, the MatchFit Dado Stop Pro is a must-have accessory for any woodworker looking to achieve professional results.

Features:

• All-in-one Package includes everything you need for tight-fitting dados
• The Matchfit Dado Stop Pro allows you to make precise and repeatable cuts quickly and easily, saving you time and increasing your accuracy.
• Uses your actual stock for setup, resulting in a perfect fit
• Tight-fitting dados without the need to measure, mark or make test cuts
• Works with any standard table saw blade (stacked dado set is optional)
• Dado Stop is exactly 3" long—use as a stop for repetitive crosscuts
• MatchFit Dovetail Clamp slides into any groove routed by a 1/2" 14° dovetail bit

Specifications:

• Dado Stop Length: 3"
• Clamping Range: 0 to 5-1/4"
• Clamp Pressure: 595 lbs open at 4"
• Clamp Jaw Depth: 2-3/8"
• Minimum Dovetail Slot Length: 3-3/4"
• Dovetail Profile for Clamp: 1/2" x 14°

What's Included:

• (1) Matchfit™ Dado Stop Pro
• (1) Matchfit™ Dovetail Clamp
• (1) Matchfit™ Setup Gauge
• (1) Illustrated Instruction Booklet
